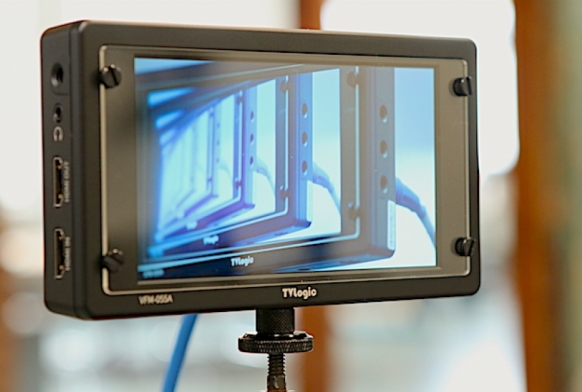

TVlogic 5.5inch Oled
- 5.5" 1920 x 1080 3G-SDI & HDMI Monitor
- Waveform, Vectorscope & Audio Meter
- 17,000:1 Contrast Ratio OLED Screen
- 160° Viewing Angle
- 3G-SDI & HDMI Input/Output & Conversion
- Multiple Safety Area & Marker Functions
- Supports Popular Camera LUTs
- 3.5mm Stereo Audio Jack
- USB-Based Firmware Updates
- Tally, Grayscale & Color Bar Functions
Prijs per dag
€ 60,00
accessoires
-
TVlogic 17inch HDLCD monitor
1920x1080 17inch panel Waveform en Vectorscope Aluminium Flightcase met Sunhood 2x SDI input, 1x output 300 cd/m2€ 100,00 per dag -
Sony 17 inch HD Oled monitor
10bit FullHD 1920x1080 oled screen really deep blacks HD SDI, HDMI and composite inputs Waveform and vectorscope Aluminum Flightcase with built-in sunhood with spigot for easy connection to light stand runs on 220V or 12V through V-lock mount€ 125,00 per dag
overview
specificaties
| Display | |
|---|---|
| Display Size | 5.5" (14 cm) |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.063 mm |
| Color Depth | 16.7 M |
| Viewing Angle (H x V) | 160 x 160° |
| Luminance | 350 cd/m² |
| Contrast Ratio | 17,000:1 |
| Display Area (H × V) | 4.8 x 2.7" (121 x 68 mm) |
| Input / Output | |
|---|---|
| Inputs |
1 x BNC: 3G/HD/SD-SDI, 1-Ch 1 x HDMI: HDMI v1.2, 1-Ch |
| Outputs |
1 x BNC: 3G/HD/SD-SDI, 1-Ch, HDMI-SDI (conversion) 1 x HDMI: HDMI-HDMI, SDI-HDMI (conversion) |
| Input Signal |
3G-SDI: 2.970 Gbps HD-SDI: 1.485 Gbps SD-SDI: 270 Mbps HDMI: 1080p/i 720p 576p/i 480p/i |
| SDI Input Signal Formats |
SMPTE-425M-A/B: 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 SMPTE-274M: 1080p: 30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 SMPTE-296M: 720p: 60/59.94/50 SMPTE-125M: 480i: 59.94 ITU-R BT.656: 576i: 50 |
| Audio | |
|---|---|
| Audio In | SDI-embedded audio (group, channel-selectable) |
| Audio Out |
1 x 3.5 mm stereo jack 1 x Internal speaker |
| Power | |
|---|---|
| Compatible Battery | Sony L-Series |
| Voltage | 6.8~12 VDC |
| Tally Signal Input | Signal In/Out Level: 5 VDC ±2 V |
| General | |
|---|---|
| Material of Construction | Cast aluminum |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 6.4 x 3.6 x 1.4" (162.5 x 92 x 35.8 mm) |
| Weight | 0.93 lb (0.42 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.5 lb |
| Box Dimensions (LxWxH) | 8.9 x 6.1 x 5.1" |
alternatieven
-
Small HD 702 Directors Monitor Set
SmallHD 702 bright 1000 nits for daylight viewing 7inch 1920x1080 FullHD LCD Fitted in Directors Cage V-lock Batteries with D-tap included mounting points for Bolt receiver Focus-assist, False Color, Waveform etc€ 110,00 per dag -
TVlogic 5.6inch monitor
5.6" 1280x800 Resolution 1:1 Pixel Mode Focus Assist Waveform/Vector Scope Power over D-tap to mini-XLR Sony L battery mount SDI/HDMI in/out€ 60,00 per dag -
Small HD 702 (on board)
SmallHD 702 bright 1000 nits for daylight viewing 7inch 1920x1080 FullHD LCD HD-SDI and HDMI in/out and cross conversion Anamorphic de-squeeze LUT management Pixel to pixel zoom Focus-assist, False Color, Waveform etc€ 60,00 per dag
In de set
- TVlogic VFM-055 monitor
- 2x sony accu en lader
- D-tap powercable
- 2x BNC or HDMI cable
- Noga or ULC arm
