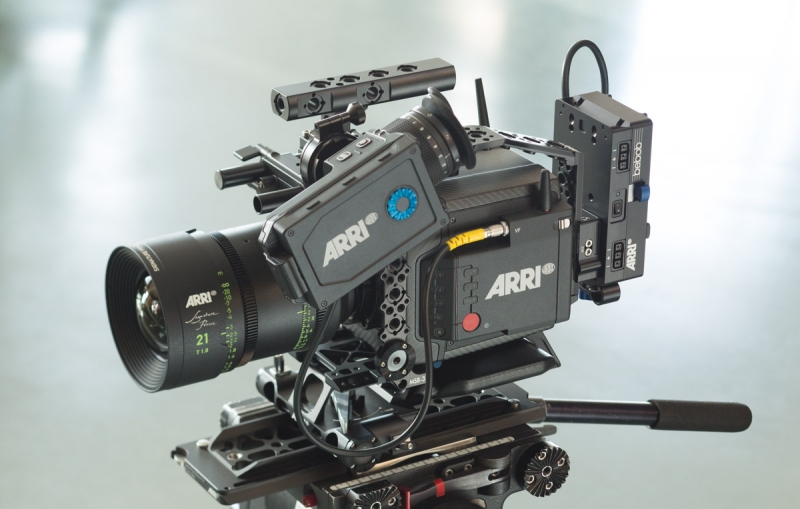

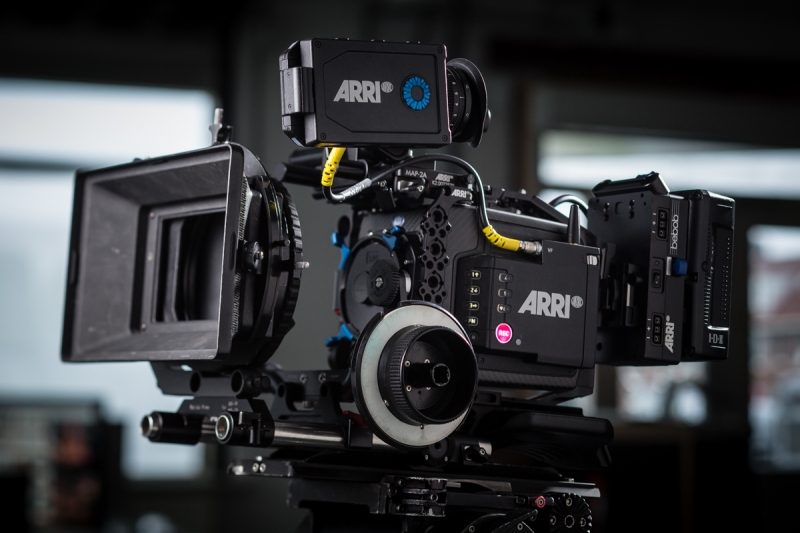

Arri Mini LF Set
- 4.5K Large Format Sensor
- Built-in anamorphic desqueeze
- records up to 90fps in Prores (LF 2K 16:9)
- body is only 2.6kg
- 1TB Codex Compact Cards
- LPL or PL mount
€ 975,00
accessoires
-
Arri WCU-4 2 Channel
ALEXA Remote Control Vibrating Markers Easy-to-Read Lens Data Display Backlit Focus Knob€ 250,00 per dag -
Zeiss Supreme Prime set 5x
set of 5; 25-29-35-50-85mm fast T1.5 stop lightweight and compact build 95mm front diameter 46,5mm image cirkel, covers S35 and LF€ 700,00 per dag -
Mamiya Sekor-C set
Vintage look PL-Mount Full Frame Aperture de-click and damping Focus Gear€ 325,00 per dag -
Arri Signature Primes 8x
Timeless aesthetic Precision engineered Warm, emotional images Lightweight magnesium casing Creamy bokeh Beautiful skintones Magnetic rear filter holder for nets, glass elements, etc.€ 1.250,00 per dag
overview
Je kunt de Arri Alexa Mini LF echt de verbeterde versie van de originele Mini noemen.
Zo is bijvoorbeeld de plek van de card slots veel handiger, is de viewfinder vernieuwd (met een degelijke kabel) en heeft die een verbeterd menu.
Er is nu een ingebouwde microfoon voor guide track, de nieuwe LPL-mount (waar ook gewone PL-lenzen op passen). Verder heeft ze ingebouwde ND’s,en de mogelijkheid om een C-force motor direct op de camera aan te sluiten zonder controller box. In combinatie met een WCU-4 remote focus kan je dan ook draadloos de camera instellingen veranderen. (zoals de interne ND’s, de color temperature, de frame rate etc)
De Mini LF kan in 4.5K tot 60fps, en in HD/2K tot 90fps. En dat terwijl de grote zus Alexa LF hier maar 40 fps haalt.
Naast ProRes kan de Mini LF ook ARRIRAW draaien.
De Mini LF kan op veel verschillende beeldformaten draaien, waaronder Open Gate/2:3 (4,5K), 2.39:1 (4,5K), 16:9 UHD/3.8K en 16/9 HD/2K. Anamorphic de-squeeze is ook ingebouwd.
Net als alle Alexa’s maakt de Mini LF gebruik van een ALEV 3 image sensor, in de Mini LF is de sensor alleen 2x zo groot. Hierdoor zijn alle Alexa’s perfect met elkaar te combineren.
Met de komst van de Arri Alexa Mini LF kan je wel zeggen dat het tijdperk van het Full Frame formaat nu echt is aangebroken.
Door de grotere sensor veranderd de beeldhoek van de lenzen die je gebruikt. Om een groothoekshot te maken gebruik je een langer brandpunt, dat heeft als voordeel dat je meer scherpte-diepte kan creëren in je beeld en dat je minder vertekening krijgt.
specificaties
36.70 x 25.54 mm / 1.444 x 1.005"
%u2300 44.71 mm / 1.760"
(camera body with LPL lens mount)
800 g (MVF-2)
LF Open Gate ARRIRAW 4.5K: 4448 x 3096
LF 16:9 ProRes HD: 3840 x 2160
LF 16:9 ProRes 2K: 3840 x 2160
LF 16:9 ProRes UHD: 3840 x 2160
LF 16:9 ARRIRAW UHD: 3840 x 2160
LF 2.39:1 ProRes 4.5K: 4448 x 1856
LF 2.39:1 ARRIRAW 4.5K: 4448 x 1856
LF Open Gate ARRIRAW 4.5K: 36.70 x 25.54 mm / 1.445 x 1.006"
LF 16:9 ProRes HD: 31.68 x 17.82 mm / 1.247 x 0.702"
LF 16:9 ProRes 2K: 31.68 x 17.82 mm / 1.247 x 0.702"
LF 16:9 ProRes UHD: 31.68 x 17.82 mm / 1.247 x 0.702"
LF 16:9 ARRIRAW UHD: 31.68 x 17.82 mm / 1.247 x 0.702"
LF 2.39:1 ProRes 4.5K: 36.70 x 15.31 mm / 1.445 x 0.603"
LF 2.39:1 ARRIRAW 4.5K: 36.70 x 15.31 mm / 1.445 x 0.603"
LF Open Gate ARRIRAW 4.5K: 4448 x 3096
LF 16:9 ProRes HD: 1920 x 1080
LF 16:9 ProRes 2K: 2048 x 1152
LF 16:9 ProRes UHD: 3840 x 2160
LF 16:9 ARRIRAW UHD: 3840 x 2160
LF 2.39:1 ProRes 4.5K: 4480 x 1856
LF 2.39:1 ARRIRAW 4.5K: 4448 x 1856
LF Open Gate ARRIRAW 4.5K: 4448 x 3096
LF 16:9 ProRes HD: 1920 x 1080
LF 16:9 ProRes 2K: 2048 x 1152
LF 16:9 ProRes UHD: 3840 x 2160
LF 16:9 ARRIRAW UHD: 3840 x 2160
LF 2.39:1 ProRes 4.5K: 4448 x 1856
LF 2.39:1 ARRIRAW 4.5K: 4448 x 1856
EI 800 base sensitivity
MXF/Apple ProRes 4444 XQ
MXF/Apple ProRes 4444
MXF/Apple ProRes 422 HQ
LF Open Gate ARRIRAW 4.5K: 0.75 - 40 fps
LF 16:9 ProRes HD: 0.75 - 90 fps
LF 16:9 ProRes 2K: 0.75 - 90 fps
LF 16:9 ProRes UHD: 0.75 - 60 fps
LF 16:9 ARRIRAW UHD: 0.75 - 60 fps
LF 2.39:1 ProRes 4.5K: 0.75 - 60 fps
LF 2.39:1 ARRIRAW 4.5K: 0.75 - 60 fps
Note: maximum fps values are preliminary information
No Pre-recording
No Intervalometer
LCD fold out monitor
Rec 2020
Log C
Custom Look (ARRI Look File ALF-2)
ASC CDL parameters (slope, offset, power, saturation)
Color correction adjustable range from -16 to 16 CC
1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values
Fixed optical low pass, UV, IR filter
SDI 1:
-HD only, Processed or Clean, with or without a look file applied
-1.5G 422 HD (SMPTE ST292-1, up to 30 fps, progessive (p) or progressive segmented frame (psf))
-3G 422 HD (SMPTE ST425-1, up to 60 fps, p)
-3G 444 HD (SMPTE ST425-3, up to 30 fps, p)
SDI 2:
-HD or UHD, Clean only, with or without a look file applied, or SDI 1 clone
-1.5G 422 HD (SMPTE ST292-1, up to 30 fps, p or psf)
-3G 422 HD (SMPTE ST425-1, up to 60 fps, p)
-3G 444 HD (SMPTE ST425-3, up to 30 fps, p)
-6G 422 UHD (SMPTE ST2081-10, up to 30 fps, p)
“Clean” is an image without surround view or overlays (status, false color, zebra, framelines, etc.)
“Processed” is an image with surround view or overlays.
1.25
1.30
1.50
1.65
1.80
2.00
Zebra
Zoom
Aperture and Color Peaking
(Line input max. level 24dBu correlating to 0dBFS)
3,5mm stereo headphone jack (on MVF-2)
Web-based remote control from smart phones, tablets and laptops via WiFi & Ethernet (beta version)
Camera Access Protocol (CAP) via Ethernet & WiFi
GPIO interface for integration with custom control interfaces
WCU-4 hand-unit with control over lens motors and operational parameters via built-in white radio
SXU-1 hand-unit with control over one lens channel
OCU-1 and Master Grip control of lens and user buttons
1x LEMO 10pin Ethernet for remote control and service
1x BNC SYNC IN
1x LEMO 7pin EXT multi purpose accessory interface w. RS pin and 24V power output
1x LEMO 4pin LBUS (on lens mount) for lens motors, daisy chainable
1x USB 2.0 in media bay (for user setups, look files etc)
Built-in White Radio for ARRI lens and camera remote control
PL-to-LPL adapter
Leitz M mount (availbale from Leitz)
with PL-to-LPL adapter: 52 mm
1x LEMO 2pin 12V
1x LEMO 7pin EXT 24V power output
(camera body with LPL lens mount)
alternatieven
-
Arri Amira Set
Same 35 mm sensor as ALEXA Premium License Highspeed up to 200fps – full sensor area Prores recording up to 4444 on CF2.0 cards up to 4K resolution Internal ND filters (0.6/1.2/2.1) 'Single Operator' design Log C & Rec 709 Dynamic range of 14 stops Natural colors and skin tones€ 675,00 per dag -
Alexa Mini Set
ALEXA sensor and image quality with internal 4:3 & ARRIRAW recording compact lightweight carbon fiber body for lightweight Integrated lens motor control and ND filters Perfect for gimbals Future-proof technology with 4K UHD, HDR & HFR recording€ 795,00 per dag -
Red Weapon Monstro 8K Vista Vision Set
8K Monstro Vistavision Sensor 8192x4320 pixels (35.4 Megapixel) Lightweight Carbon Body Up to 300 fps (at 2K 2.4:1 2048 x 864) Interchangeable Optical Lowpass Filters Interchangeable Lens Mount PL/EF/LeicaM/BNCR Records in RedRaw and ProRes simultaneously€ 775,00 per dag -
Sony Venice 6K FullFrame set
Firmware 4 with Highspeed 6K up to 60fps 4K up to 110fps 24x36mm 6K FullFrame sensor 4K anamorphic and S35 PL/LPL mount or Sony E-mount 8-stop mechanical ND filter 1920x1080 Oled Viewfinder Records Raw, X-OCN to AXS cards and X-AVC to SxSpro€ 775,00 per dag
In de set
- Arri Mini LF
- EVF 2
- Arri Accessory set Advanced
- Arri V-lock breakout box
- 2x 1Tb Codex Compact Card
- Cardreader 2x usb-c/usb-c datakabel
- 4x190Wh IDX V-lock and charger
