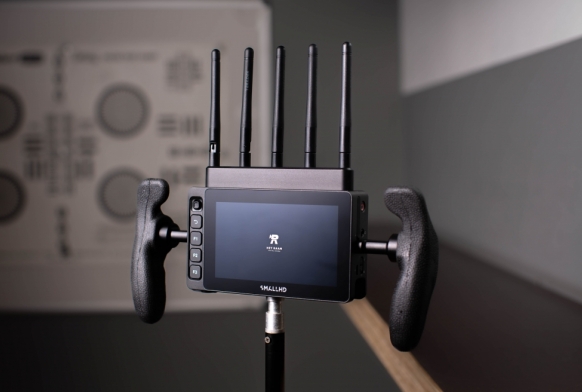

SmallHD Ultra 5 RX Bolt 6 Monitor
- Extreem helder in daglicht, 3000 nits
- Lekker compact, 5 inch met een ingebouwde reciever
- Fysieke knopjes om vingerafdrukken voor te zijn
- Elegant ontwerp
Prijs per dag
€ 135,00
overview
De Ultra 5 van SmallHD is met de hoge helderheid (3000nits) en de uitstekende kleurweergave een fijne afkijkmonitor voor op de set. Deze versie heeft een ingebouwde Bolt 6 receiver. Handig als je met de Movi werkt, een steadicam of handheld, toch weer een kastje minder. Is te pairen met alle Bolt 750 'en' Bolt 6 transmitters.specificaties
Display
| Panel Type | LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 3000 nits / cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 443 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform |
Inputs / Outputs
| Video I/O |
1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x BNC (3G-SDI) Input 1 x HDMI Input |
| Embedded Audio |
HDMI SDI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x LEMO 0B 2-Pin (2.1 A / 34 VDC) Input |
| Other I/O |
1 x LEMO 5-Pin Output 1 x RJ45 Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible |
No *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format |
SDI (10-Bit 4:2:2) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
Power
| DC Input Power | 10 to 34 VDC at 2.1 A |
| Battery Type | None |
Mounting
| Mounting | 6 x 1/4"-20 Female |
Environmental
| Certifications |
CE, FCC, IC, RoHS *as per Manufacturer |
General
| Material of Construction | Aluminum |
| Dimensions | 5.9 x 3.4 x 1.3" / 150 x 86 x 34 mm |
| Weight | 1.1 lb / 504 g |
Packaging Info
| Package Weight | 1.985 lb |
| Box Dimensions (LxWxH) | 9.5 x 7 x 2.5" |
Teradek Bolt 6 RX 750 Monitor Module For Smart 7 Series (V-Mount) Specs
| Antenna I/O | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
Wireless
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range |
Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
Format Support
| Video Format |
HDMI/Wireless UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Timecode Support | Yes |
Power
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 6 W |
Environmental
| Environmental Protection | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
General
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | 10.3 oz / 292 g |
alternatieven
-
SmallHD Cine7RX Bolt 750 set
FullHD (1920x1200) 7inch screen up to 1800 nits brightness 100% DCI-P3 Color Gamut Built in Bolt 750 RX FullHD/4K receiver€ 160,00 per dag
In de set
- Ultra 5 RX Bolt 6 met 5x Antenne
- 2x Handgrip
- Nekband
