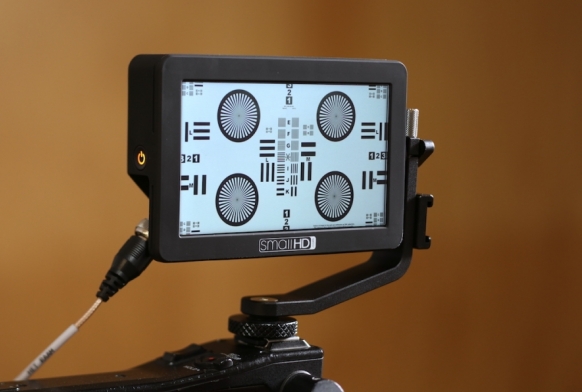

SmallHD 5-inch Focus Monitor
- 5" Touchscreen Display, with easy to manage menu
- Daylight Viewable (800 Nits)
- 3G SDI Input (No HDMI)
- Tilt Arm included: a lightweight, camera-top mounting solution.
Prijs per dag
€ 50,00
accessoires
-
FS7 Cameraset
4k Super35 Exmor sensor Recording of up to 180 fps in full HD Built in ND Filters Equipped with Vocas accessoires which makes the life of the operator even more easy. Different mounts available to use all sort of lenses (EF, PL, Nikon)€ 195,00 per dag
specificaties
| Display | |
|---|---|
| Display | 5" / 12.7 cm IPS LCD |
| Resolution | 1280 x 720 |
| Pixel Density | 294 ppi |
| Aspect Ratio | 16:9 |
| Brightness | 800 cd/m² |
| Color Gamut | 70% NTSC |
| Bit Depth | 10-bit |
| Viewing Angle | 160° |
| Backlight | White LED |
| Temperature Adaptive Color | No |
| Interfaces | |
|---|---|
| Inputs | 1 x BNC, 3G/HD/SD-SDI |
| Audio Out | 1 x 3.5 mm stereo mini-jack |
| Other I/O | 1 x Micro-USB |
| Input Signal |
3G-SDI: YCC 4:2:2 1080p: 60/59.94/50 1080i: 60/59.94/50 HD-SDI: RGB/YCC 4:2:2 and 4:4:4 1080p: 60/30/25/24/23.98 1080PsF: 29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD-SDI: YCC 4:2:2 at 10-bit 576i: 25 480i: 29.97 Audio: SDI |
| Software | |
|---|---|
| Pixel Zoom | 2x, 4x |
| Anamorphic De-Squeeze | 1.33x, 1.5x, 1.66x, 2.0x |
| Audio Metering | Up to 8 channels |
| Power | |
|---|---|
| Power Input | 1 x NP-F (Sony L) battery bay |
| Power Output | 1 x Barrel: 3.5 mm outer, 1.1 mm inner |
| Voltage | 6-8.4 VDC |
| Power Consumption | 5.04 W |
| General | |
|---|---|
| Storage | 1 x SD card slot |
| Mounting Threads | 3 x 1/4"-20 |
| Operating Temperature | 32 to 158° F / 0 to 70° C |
| Dimensions (HxWxD) | 3.34 x 5.24 x 0.98" / 8.48 x 13.31 x 2.49 cm |
| Weight | 6.6 oz / 187 g (without battery) |
| Packaging Info | |
|---|---|
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 9.4 x 7.1 x 2.1" |
alternatieven
-
TVlogic 5.6inch monitor
5.6" 1280x800 Resolution 1:1 Pixel Mode Focus Assist Waveform/Vector Scope Power over D-tap to mini-XLR Sony L battery mount SDI/HDMI in/out€ 60,00 per dag -
SmallHD 502 EVF
Removable Optical Loupe -2 to 4 Diopter Adjustment 5" 1920 x 1080, HDMI & SDI Monitor HDMI & SDI In/Out with Cross Conversion User Definable Presets Discrete Display/Output 3D LUT Support Joystick Menu Navigation Anamorphic de-squeeze HD scopes€ 50,00 per dag -
Small HD 702 (on board)
SmallHD 702 bright 1000 nits for daylight viewing 7inch 1920x1080 FullHD LCD HD-SDI and HDMI in/out and cross conversion Anamorphic de-squeeze LUT management Pixel to pixel zoom Focus-assist, False Color, Waveform etc€ 60,00 per dag -
TVlogic 5.5inch Oled
5.5" 1920 x 1080 3G-SDI & HDMI Monitor Waveform, Vectorscope & Audio Meter 17,000:1 Contrast Ratio OLED Screen 160° Viewing Angle 3G-SDI & HDMI Input/Output & Conversion Multiple Safety Area & Marker Functions Supports Popular Camera LUTs 3.5mm Stereo Audio Jack USB-Based Firmware Updates Tally, Grayscale & Color Bar Functions€ 60,00 per dag
In de set
- SmallHD 5" Focus Monitor
- Camera-top Tilt Arm
- Softsleeve
- 2x battery with charger
